Mount Tai HE Magnetic Linear Switches
Regular price
$4.90
Sale price
$4.90
Regular price
Unit price
All orders undergo a thorough manual inspection before shipping. If any of your items are defective or of poor quality, we will replace them immediately!
Most orders are shipped within 24-48 hours of placement.
You can return unused items within 7 days of receiving your order for a full refund, excluding shipping costs and a 5% restocking fee. For more details, please refer to our Returns & Refunds page.

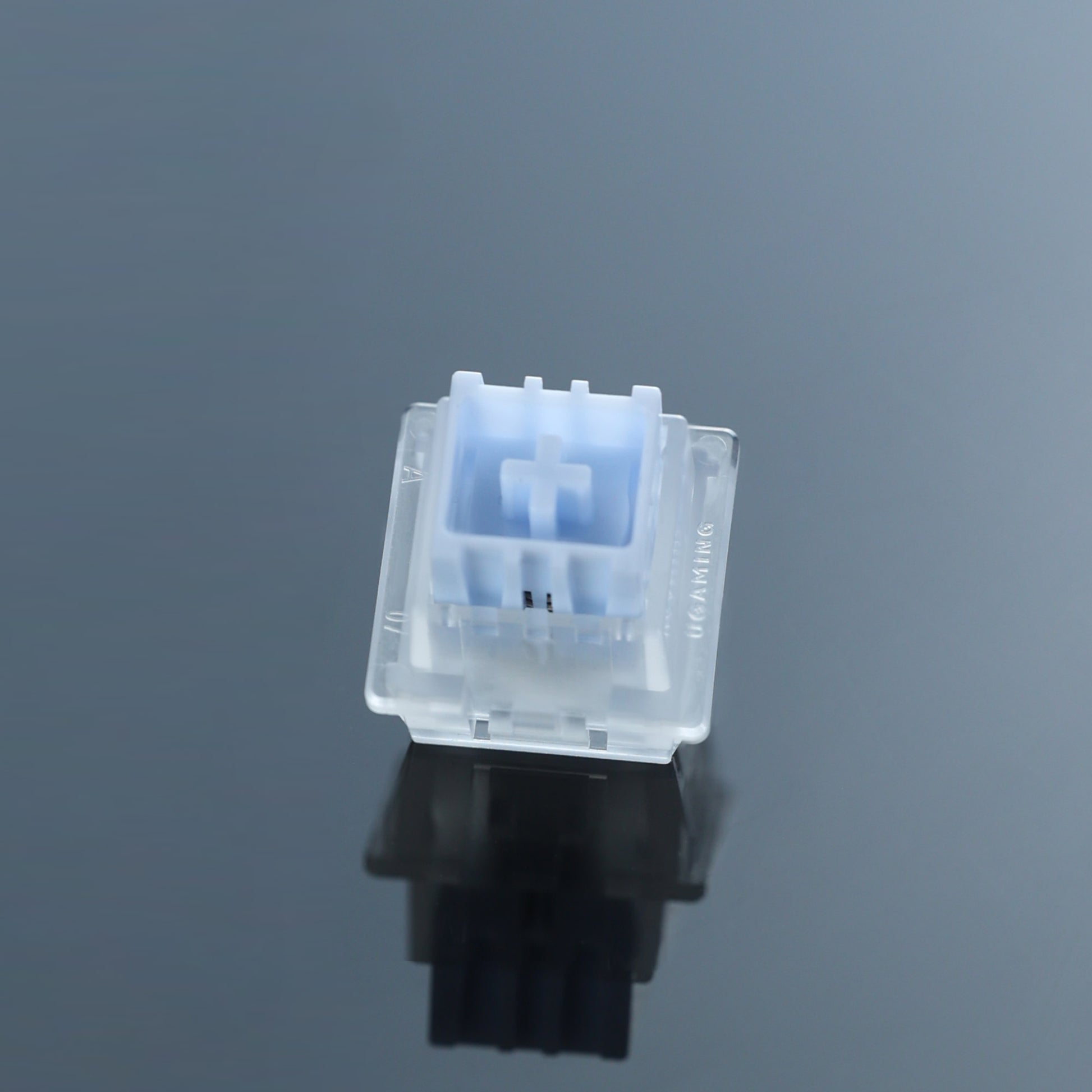

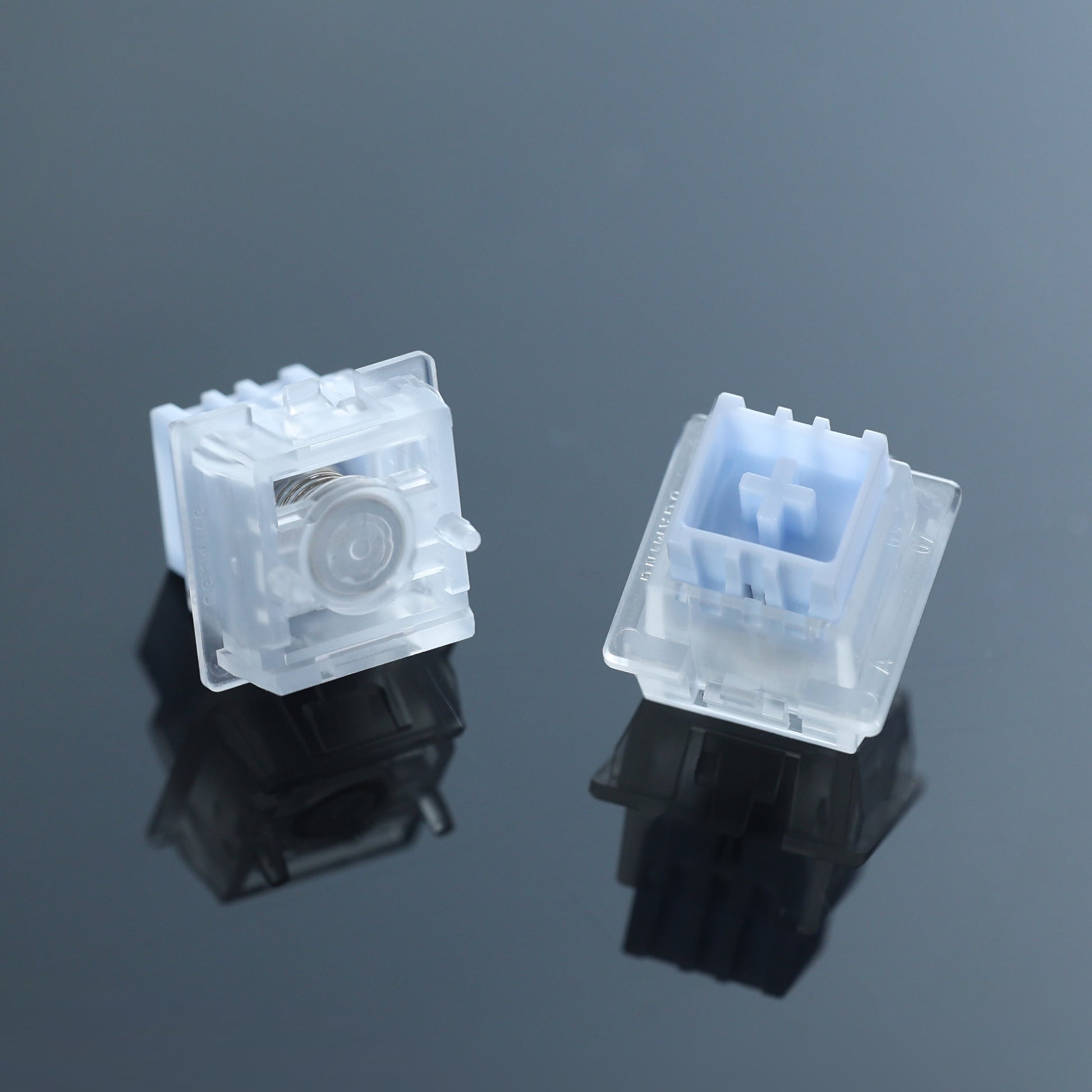

Mount Tai HE Magnetic Linear Switches
Overview
| Mount Tai HE Magnetic Linear Switches | |
|---|---|
| Housing Material | PC |
| Stem Material | UPE Mix |
| Total Travel | 3.5mm |
| Spring Length | 22mm |
| Initial Gauss | 100gs (1.2mm PCB) |
| Bottom-out Gauss | 640gs (1.2mm PCB) |
| Initial Force | 35gf |
| Bottom-out Force | 47gf |
| Magnet | Center & N-pole |
| Pre-lubed | Yes |
Important Notes
- Compatibility: Magnetic switches are not compatible with standard mechanical keyboards. They only work with mainstream magnetic switch keyboards like Wooting, Melgeek, iQunix, Nuphy, MonsGeek, ATK, Mad Catz, AULA, FL·ESPORTS, Keyverse, WOB, Angry Miao, ISO, Rakka, MM Studio, Starray, etc.
- Pre-lubrication: Factory pre-lubed and ready to use straight out of the box.
- Design & Maintenance: Integrated housing with clip-secured design; not disassemblable. Custom lubrication can be applied through the stem opening and dual windows at the bottom.
- LED Slot: Symmetrical design—no need to worry about orientation. Just align the positioning pins with the PCB holes.
-
Precision & Calibration:
- Supports minimum step precision of 0.005mm for Rapid Trigger (RT).
- Reliable 0.01mm setting without accidental actuation. Actual precision may vary based on PCB and installation.
-
Calibration Steps:
- Unplug the keyboard’s data cable.
- Replace switches with Mount Tai HE Magnetic Linear Switches.
- Plug the data cable back in.
- Open driver software and select the magnetic switch preset (recommend: Wan Ci Wang RGB).
- Press a key fully down and gently wiggle it for ~2 seconds to calibrate.
- After calibration, switches are ready for use.
